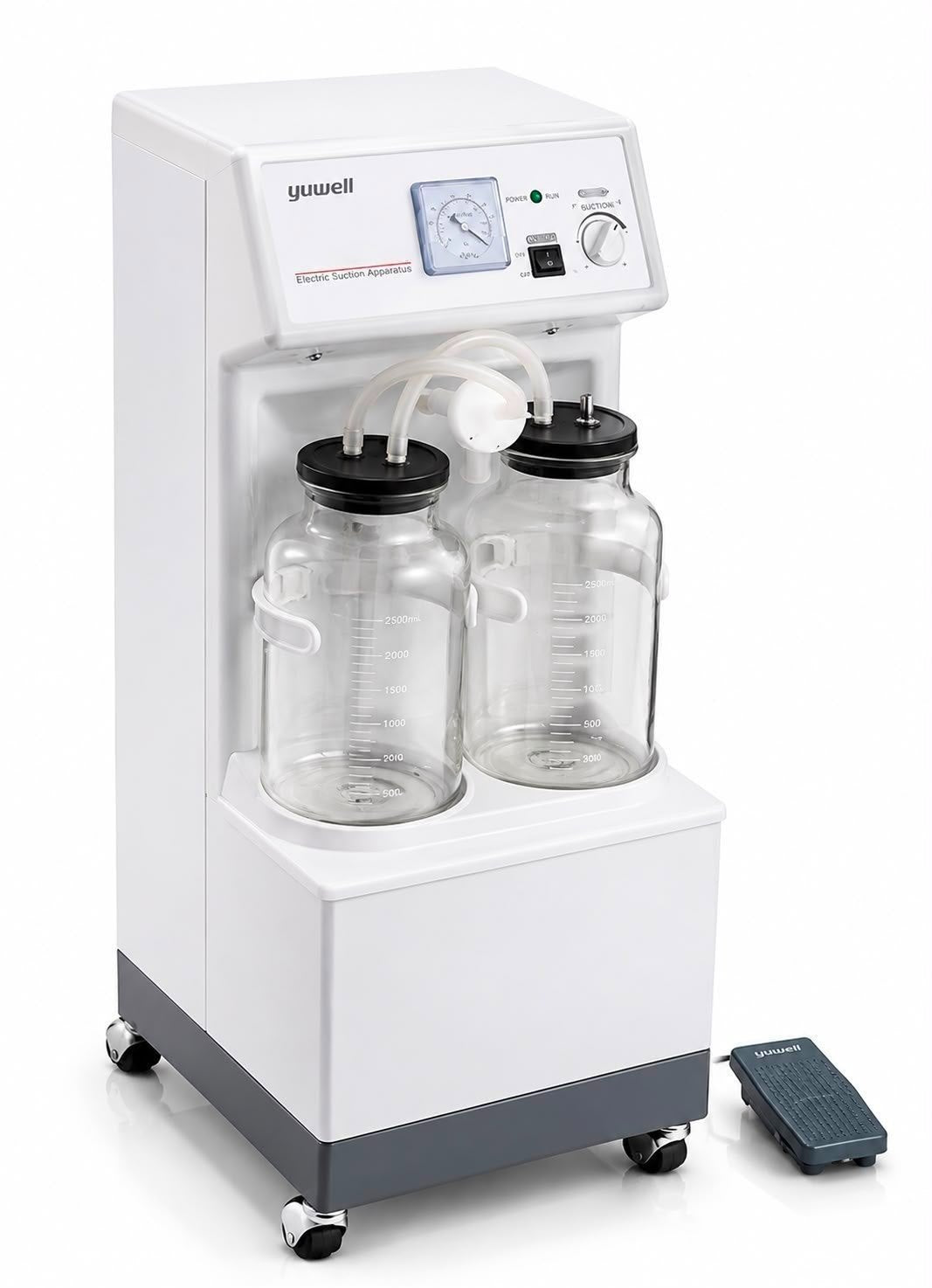

Yuwell 7A-23B – Electric Suction Apparatus

Yuwell 7A-23B – Electric Suction Apparatus

The Yuwell 7A-23B is a high-capacity electric suction apparatus designed for the effective removal of phlegm, thick liquids, and other secretions. Its oil-free piston pump provides reliable suction performance with adjustable negative pressure, making it suitable for hospitals, clinics, surgical procedures, and healthcare settings.

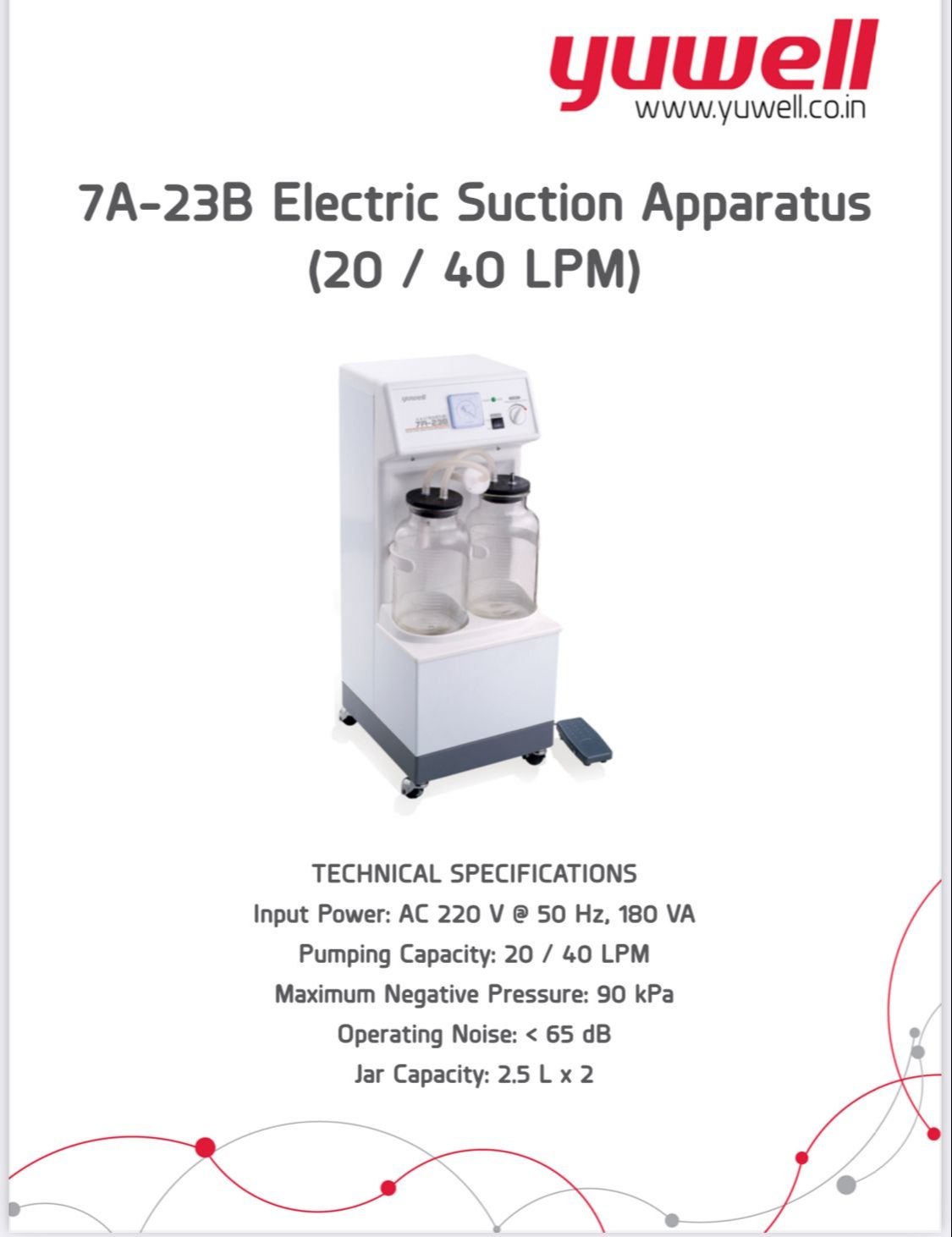

Specifications:

• Pumping Rate: ≥ 20 L/min
• Maximum Negative Pressure: ≥ 90 kPa
• Negative Pressure Adjustment Range: 20 kPa – Maximum Negative Pressure
• Reservoir Capacity: 2,500 ml × 2
• Operating Noise: ≤ 65 dB(A)
• Input Power: ≤ 180 VA
• Power Supply: AC 220 V ± 22 V, 50 Hz ± 1 Hz
• Pump Type: Oil-free piston pump
• Dimensions: 35 × 30.5 × 79.5 cm
• Weight: Approximately 19.5 kg

Key Features:

• Oil-Free Piston Pump: Provides reliable suction without the need for oil lubrication, reducing maintenance requirements.
• High Suction Performance: Designed to provide strong and efficient suction for phlegm, thick liquids, and other secretions.
• Adjustable Negative Pressure: The suction pressure can be conveniently adjusted according to the application.
• Dual Collection Jars: Equipped with two 2.5-liter collection jars for higher capacity and convenient operation.
• Low-Noise Operation: Designed to operate at a noise level of ≤ 65 dB(A).
• Hand and Foot Controls: Provides convenient operation through manual and foot-switch controls.

Medical Applications:

• Phlegm and secretion removal
• Thick liquid aspiration
• Surgical procedures
• Hospital use
• Clinical use
• Emergency and healthcare settings

Package Contents:

• Yuwell 7A-23B suction unit
• 2 × 2,500 ml collection jars
• Suction tubing
• Foot switch
• Bacterial filters
• Tubing accessories
• User manual
